Taizhou Huangyan Daelong Mold is a professional China 32 Cavity Hot Ruuner PET Preform Mould with Valve Gate supplier. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.
| 32 cavity Hot ruuner PET Preform Mould with valve gate ,the cavity use : | Germany 2316 with HRC 42-45 |
| Mould core: | Germany 2316 with HRC 45-48 |
| Mould neck : | Germany 2316 with HRC 45-50 |
| Valve Pin : | SKD51 from Japan with HRC 58-60 |
| Hot runner nozzle: | America Beryllium copper with HRC 37 |
| Mould manifold plate: | H13 from America with HRC 35-38 |
| Mould other plate: | P20 |

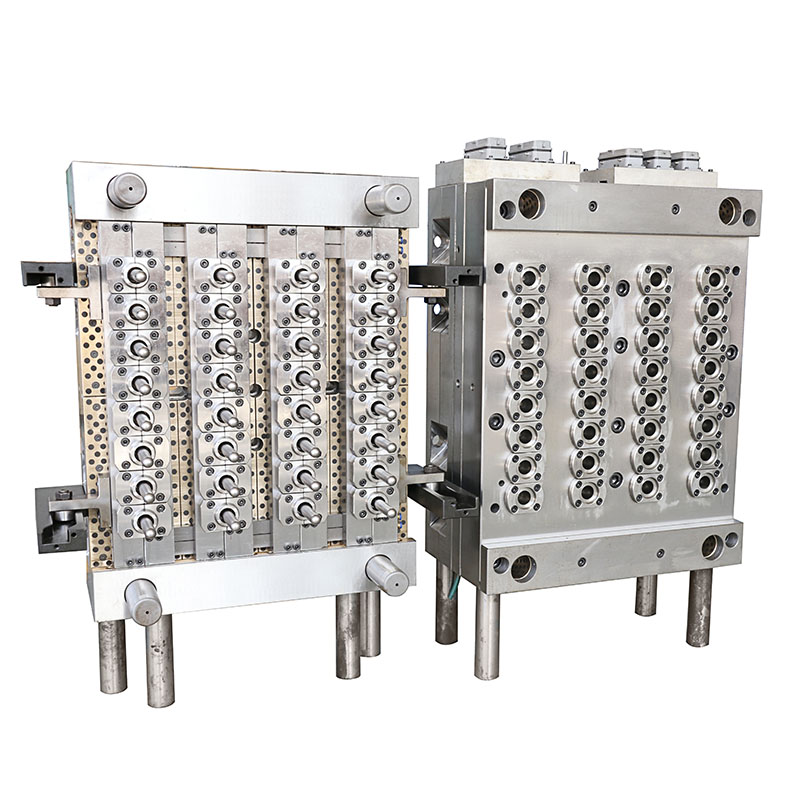

Product Details:32 cavity Hot ruuner PET Preform Mould with valve gate
1.Mold platen steel: P20 Tool steel HRC27-32.
2.Cavity, core & neck rings steel: Germany 2316 with HRC 42-45, high grade with hard treatment up to HRC 50°-54°
3.Interchangeable parts for every cavity.
4.PC-VG Series Valve Grate Hot Runner System.
5.Machine tolerance standards 0.005mm-0.003mm.
6.90% of mold parts interchangeable with injection mold machines.
7.Guaranteed preform wall thickness concentricity:±0.0075mm(L=100mm).
8.Optimized preform design ensures dynamic bottle blowing success.
The outer packing with wooden cases by sea transportation.
Our technician can be the buyer’s factory to install and run the mould. But the buyer should bear all the cost for the technician’s trip(include the air ticket, the cost of the accommodation and the salary)
THE DATE OF DELIEVERY: 35-45 DAYS AFTER GETTING THE DEPOSIT.
THE PORT OF DELIEVERY: NINGBO,CHINA
