2 Cavity Hot Ruuner 5 Gallon PET Preform Mold made in China can be bought with low price from Huangyan Daelong Mold, which is a professional high quality products manufacturers and factory in China. We provide customized products service. If you want quotation, you can ask us by leaving a message. We will get back to you as soon as possible.
| 2 cavity Hot ruuner 5 gallon PET Preform Mold cavity use : | Germany 2316 with HRC 42-45 |
| Mould core: | Germany 2316 with HRC 45-48 |
| Mould neck : | Germany 2316 with HRC 45-50 |
| Valve Pin : | SKD51 from Japan with HRC 58-60 |
| Hot runner nozzle: | America Beryllium copper with HRC 37 |
| Mould manifold plate: | H13 from America with HRC 35-38 |
| Mould other plate: | P20 |

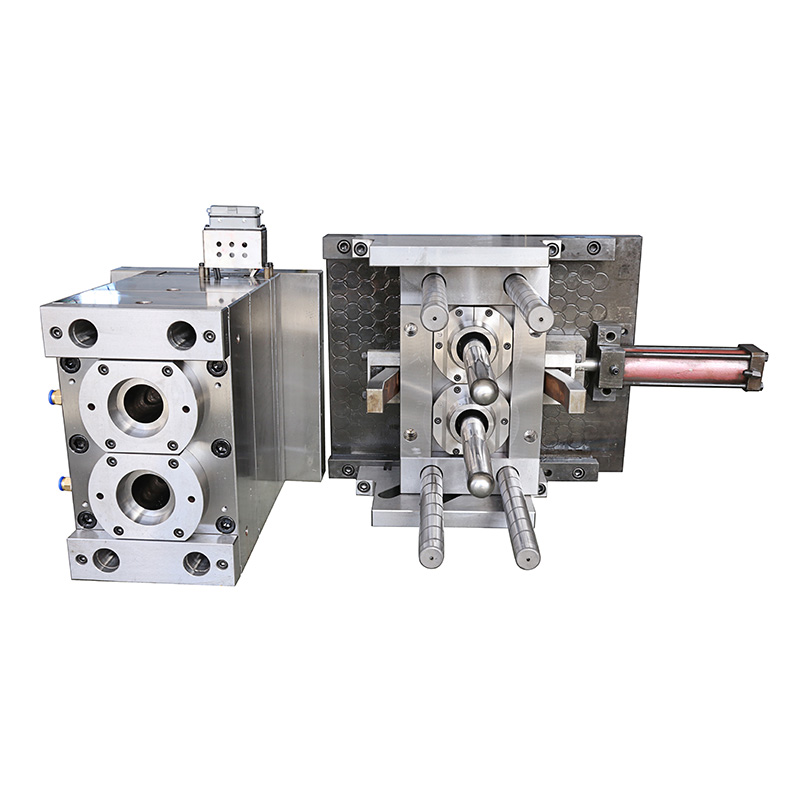

Product Details:2 cavity Hot ruuner 5 gallon PET Preform Mold
1.Mold platen steel: P20 Tool steel HRC27-32.
2.Cavity, core & neck rings steel: Germany 2316 with HRC 42-45, high grade with hard treatment up to HRC 50°-54°
3.Interchangeable parts for every cavity.
4.PC-VG Series Valve Grate Hot Runner System.
5.Machine tolerance standards 0.005mm-0.003mm.
6.90% of mold parts interchangeable with injection mold machines.
7.Guaranteed preform wall thickness concentricity:±0.0075mm(L=100mm).
8.Optimized preform design ensures dynamic bottle blowing success.
The outer packing with wooden cases by sea transportation.
Our technician can be the buyer’s factory to install and run the mould. But the buyer should bear all the cost for the technician’s trip(include the air ticket, the cost of the accommodation and the salary)
THE DATE OF DELIEVERY: 35-45 DAYS AFTER GETTING THE DEPOSIT.
THE PORT OF DELIEVERY: NINGBO,CHINA
